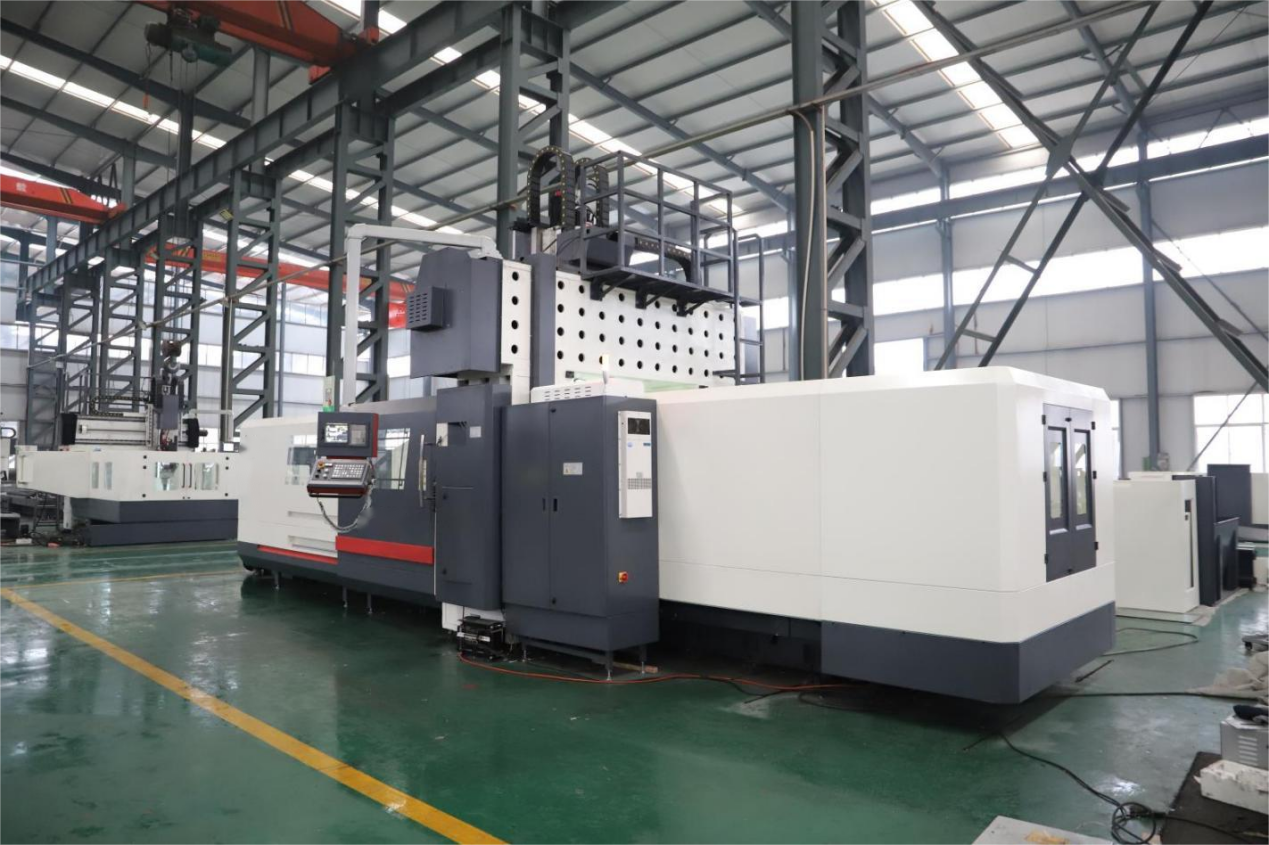

CNC GANTRY MACHINING CENTER WITH SIEMENS828D GMC8022
$230000
|
Specification |
Unit |
GMC8022 |
|
Table size |
mm |
8000*1800 |
|
Max table load |
KG |
20000 |
|
Table travel X |
mm |
8200 |
|
Table travel Y |
mm |
2500 |
|
Table travel Z |
mm |
1000 |
|
T-slot(N/W/D) |
mm |
9/28/180 |
|
Spindle nose to table surface |
mm |
200-1200 |
|
Distance between two column |
mm |
2200 |
|
Spindle speed range |
rpm |
6000 |
|
Spindle taper |
/ |
BT50 |
|
Spindle diameter |
mm |
190 |
|
Rapid traverse speed – X/Y/Z axis |
mm/min |
10000/12000/10000 |
|
Feed rate ( X / Y / Z axes) |
mm/min |
1-8000 |
|
tool magazine |
- |
24 tools Disc type |
|
Max tool length |
mm |
300 |
|
Max tool diameter |
mm |
Φ105/200 |
|
Max tool weight |
kg |
15 |
|
Controller |
- |
SIEMENS828D |
|
Spindle motor power |
Kw |
22/26KW |
|
Positioning accuracy |
mm |
0.040/0.020/0.015 |
|
Repeatability Positioning accuracy |
mm |
0.025/0.015/0.012 |
|
Overall size |
mm |
10500*5800*5600 |
|
Electrical capacity |
KVA |
50 |
|
Machine weight |
T |
60 |
