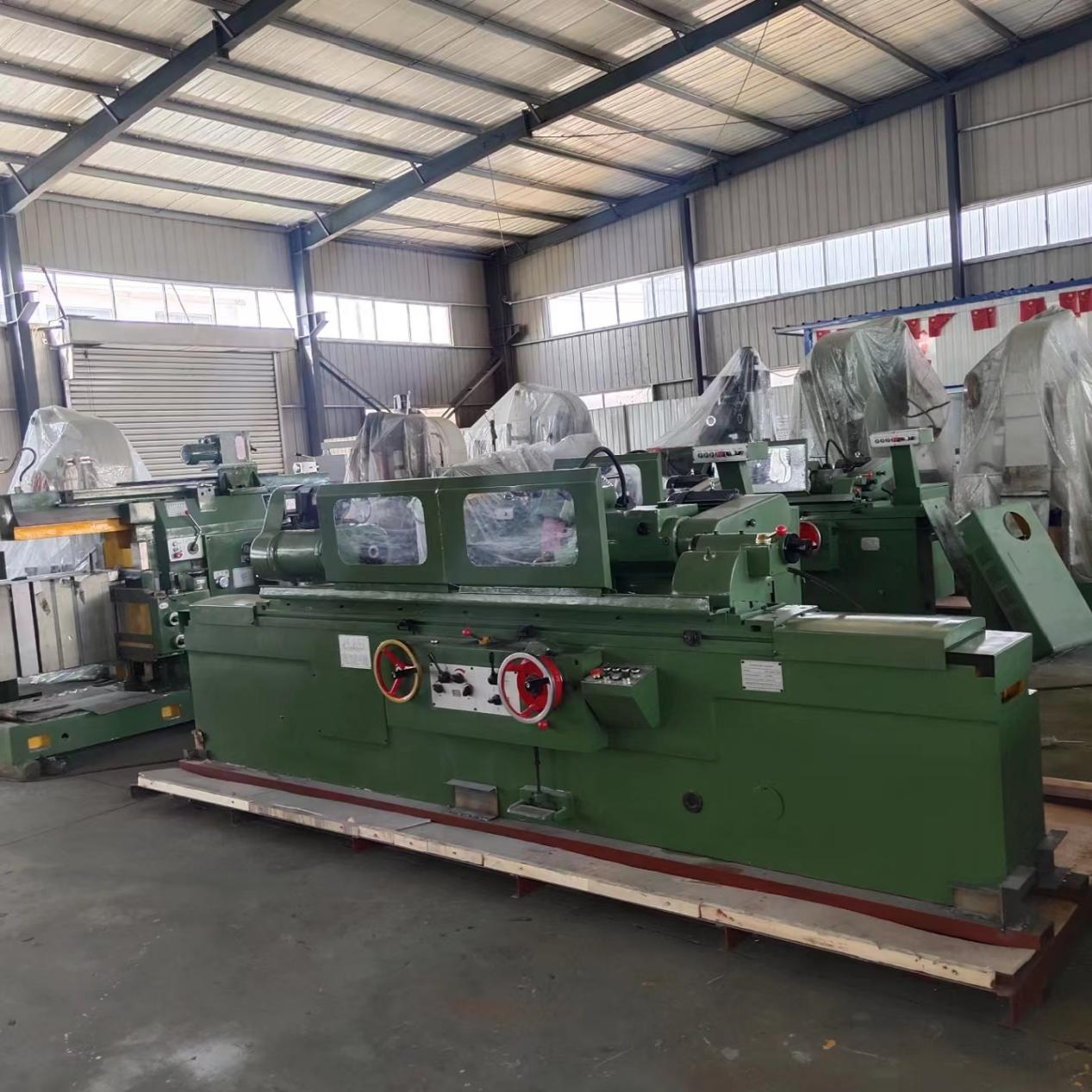

Cylindrical Grinding Machine MQ1350X1500
$31800
|
Specification |
MQ1350B×1500 |
MQ1350B×2000 |
MQ1350B×3000 |
|
Grinding Capacity |
|||
|
Maximum Grinding Diameter × Length |
∅500 × 1500mm |
∅500 × 2000mm |
∅500 × 3000mm |
|
Center Height |
270mm |
270mm |
270mm |
|
Center Distance |
1500mm |
2000mm |
3000mm |
|
External Grinding Diameter Range |
∅25–500mm |
∅25–500mm |
∅25–500mm |
|
Diameter Supported by Steady Rest |
∅25–200mm |
∅25–200mm |
∅25–200mm |
|
Max. Grinding Length (with Tailstock) |
1250mm |
1750mm |
2750mm |
|
Max. Workpiece Weight |
1000kg |
1000kg |
1000kg |
|
Grinding Wheel |
|||
|
Diameter Range |
∅550–750mm |
∅550–750mm |
∅550–750mm |
|
Worktable |
|||
|
Maximum Grinding Length |
1500mm |
2000mm |
3000mm |
|
Worktable Swivel Angle (Clockwise) |
3° |
2° |
2° |
|
Worktable Swivel Angle (Counterclockwise) |
6° |
5° |
3° |
|
Hydraulic Transmission Speed |
0.1–3m/min |
0.1–3m/min |
0.1–3m/min |
|
Maximum Longitudinal Travel |
1500mm |
2000mm |
3000mm |
|
Handwheel Travel per Revolution |
5mm |
5mm |
5mm |
|
Motor Power |
|||
|
Total Power |
20.63kW |
20.63kW |
20.63kW |
|
Dimensions and Weight |
|||
|
Overall Dimensions (L×W×H) (mm) |
5150×2140×1550 |
6050×2140×1550 |
8200×2140×1550 |
|
Net Weight (kg) |
8600kg |
9900kg |
11350kg |
