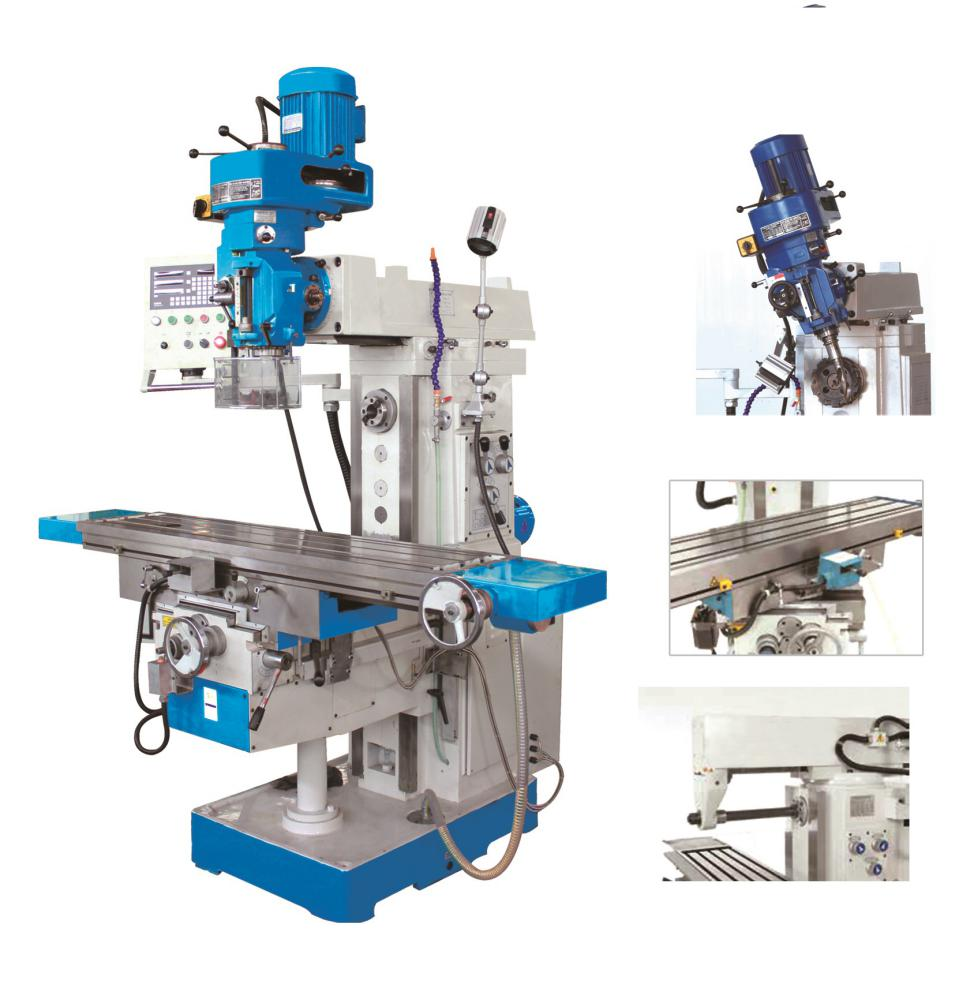

Universal Turret Milling Machine ZX6332A Servo motor
$8000
Using one Servo Motor to control work table’s auto feed on XYZ Axis, high torque, energy saving and stable
Equipped with 3HP Step Milling Head,
Optional : 3HP variable Milling Head, 5HP milling Head and Gear auto feed Milling Head.
Large travel on XYZ axes ensure wide ranges process.
One Servo Motor drive 3 Axis
Milling Head tilting front & back type and Rotary Work Table type are optional.
|
Description |
Unit |
ZX6332A SERVO |
ZX6332C SERVO |
|
|
|
|
|
|
Table size |
mm |
1370*320 |
1370*320 |
|
X/Y/Z travel |
mm |
820*380*400 |
1000*380*400 |
|
MAC rotary angle of Table |
° |
Optional±45° |
Optional±45° |
|
Max Table Weight |
Kg |
260 |
260 |
|
T-slots（NO./Width/Pitch） |
mm |
3*14*80 |
3*14*80 |
|
Spindle speed series and range |
rpm |
V 45 - 3750（2 Steps） H 35-1500 （12 Steps） |
V 45 - 3750（2 Steps） H 35-1500 （12 Steps） |
|
Ram |
mm |
460 |
460 |
|
Distance between spindle center line and Table Surface |
mm |
75-475 |
75-475 |
|
Distance between spindle Nose and Table Surface |
|
260-660 |
260-660 |
|
Spindle Taper |
|
7:24 IS040, |
7:24 IS040, |
|
table rapid speed（X/Y/Z） |
mm |
1335、1335、1000 |
1335、1335、1000 |
|
Table Feed（X/Y/Z） |
mm |
X、Y：30-830（8 steps） Z：23-625（8 steps） |
X、Y：30-830（8 steps） Z：23-625（8 steps） |
|
Main Motor Power |
Kw |
V：5 Hp H：3 Kw |
V：5 Hp H：3 Kw |
|
Feed Motor |
Kw |
3 Axis using a 15N.m Servo Motor， auto feed and change speeds variably (3 Axis driven by one Servo Motor) |
3 Axis using a 15N.m Servo Motor，auto feed and change Speeds variably (3 Axis driven by one Servo Motor) |
|
Dimensions |
mm |
1900*1750*2230 |
1900*1750*2230 |
|
Machine Weight |
kg |
1750 |
1800 |
