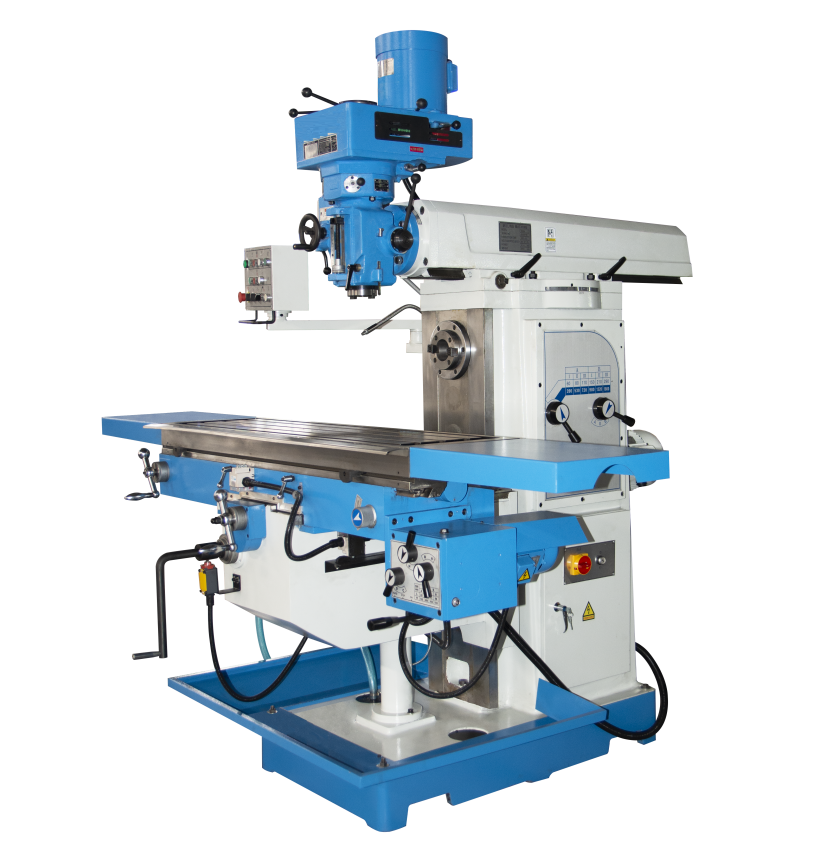

Universal Drilling & Milling Machine ZX6336L
$8500
- Heavy, solid model made of high-grade Meehanite casting
- Solid rectangular slideways for Y-axis
- All axis with adjustable dovetail slide ways
- Right-left handed rotation
- High concentricity precision due to taper roller bearings, less than 0.01mm measured in the spindle sleeve
- Automatic spindle sleeve feed
- Main switch with motor protection, right/left handed rotation switch, emergency-stop button
- Price-efficient and value stable
|
Specification |
Unit |
ZX6336L |
|
Spindle taper |
|
ISO40( Vertical ) |
|
Spindle travel |
mm |
140 |
|
Sleeve feed |
mm/r |
0.04/0.08/0.15 |
|
Distance from vertical spindle to column |
mm |
200-600 |
|
Distance from vertical spindle to table |
mm |
180-530 |
|
Distance from horizontal spindle to table |
mm |
0-350 |
|
Distance from horizontal spindle to arm |
mm |
230 |
|
Spindle speed range |
r/min |
Variable 60~3750 (Vertical) |
|
Table size |
mm |
1500 × 360 |
|
Table travel |
mm |
1000 × 320 × 400 |
|
Range of longitudinal,cross travel |
mm/min |
15~370 / (Max. 540) |
|
Up/down speed of table |
mm |
590 |
|
T of table(N0./WIDTH/DISTANCE) |
mm |
3/18/80 |
|
Main motor |
kw |
3.7 (Vertical) 4 (Horizontal) |
|
Motor of table power feed |
kw |
0.75 |
|
Up/down motor of headstock |
kw |
1.1 |
|
Coolant pump motor |
kw |
0.09 |
|
Speed of coolant pumps |
L/min |
25 |
|
Overall dimension |
mm |
2220 × 1790 × 2360 |
|
N.W./G.W. |
kg |
2340 / 2540 |
