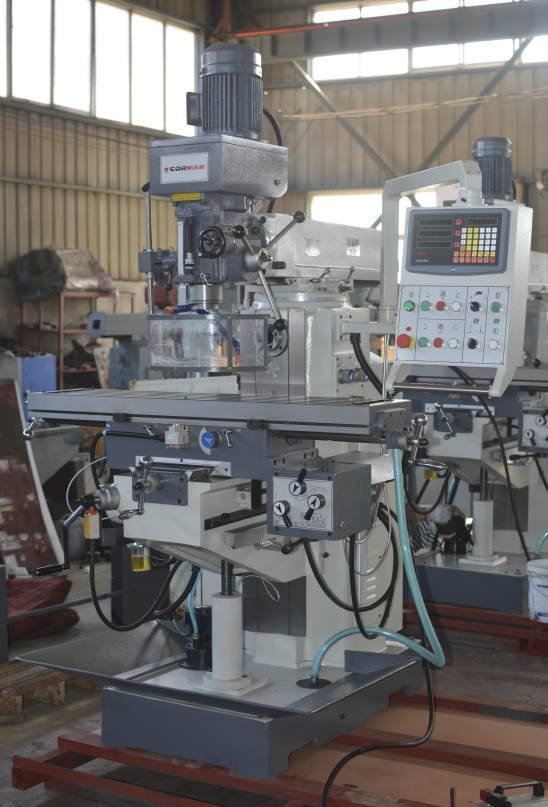

Drilling and Milling Machine (Vertical and Horizontal ) ZX6350DA
$5300
Milling machine equipped with vertical head and horizontal spindle
Milling machine with working feeds in X and Y axes, and quick setting feed in Z axis
Vertical head moved out spindle
Power feed within 3 ranges and possibility of automatic threading
Vertical swivel head within 0~90 degree
Extended and swivel upper arm
|
Model |
ZX6350DA |
|
Table Working Dimension |
1270 mm x 280 mm |
|
Table Travel Longitudinal |
700 mm |
|
Table Travel Cross |
260 mm |
|
Table - Column Vertical Travel |
380 mm |
|
Number of T-Slots in Table |
3 |
|
Distance between Slots I |
50 mm |
|
Max. Table Load |
300 kg |
|
Vertical Head |
Swivel 90 degree |
|
Spindle Quill Travel |
127 mm |
|
Spindle Taper |
R8 |
|
Spindle Power Feed |
0.04/0.08/0.15 mm/rotation |
|
Vertical Spindle Speed |
70-3800 rpm |
|
Vertical Spindle Steps |
Variable Speed |
|
Horizontal Spindle Speed |
40- 1300 rpm |
|
X Axis Feeding Speed |
24 - 402 mm/min |
|
Y Axis Feeding Speed |
24 - 402 mm/min |
|
Z Axis |
Motorized |
|
Upper Beam Travel |
460 mm |
|
Vertical Spindle - Column Distance |
260 - 740 mm |
|
Vertical Spindle - Table Distance |
100 - 480 mm |
|
Horizontal Spindle - Table Distance |
0 - 380 mm |
|
Main Motor Power |
2.25 kw/ 3 HP |
|
Horizontal Motor Power |
2.2 kw |
|
Overall Dimension |
1520 x 12890 x 2150 mm |
|
Weight |
1350 kg |
