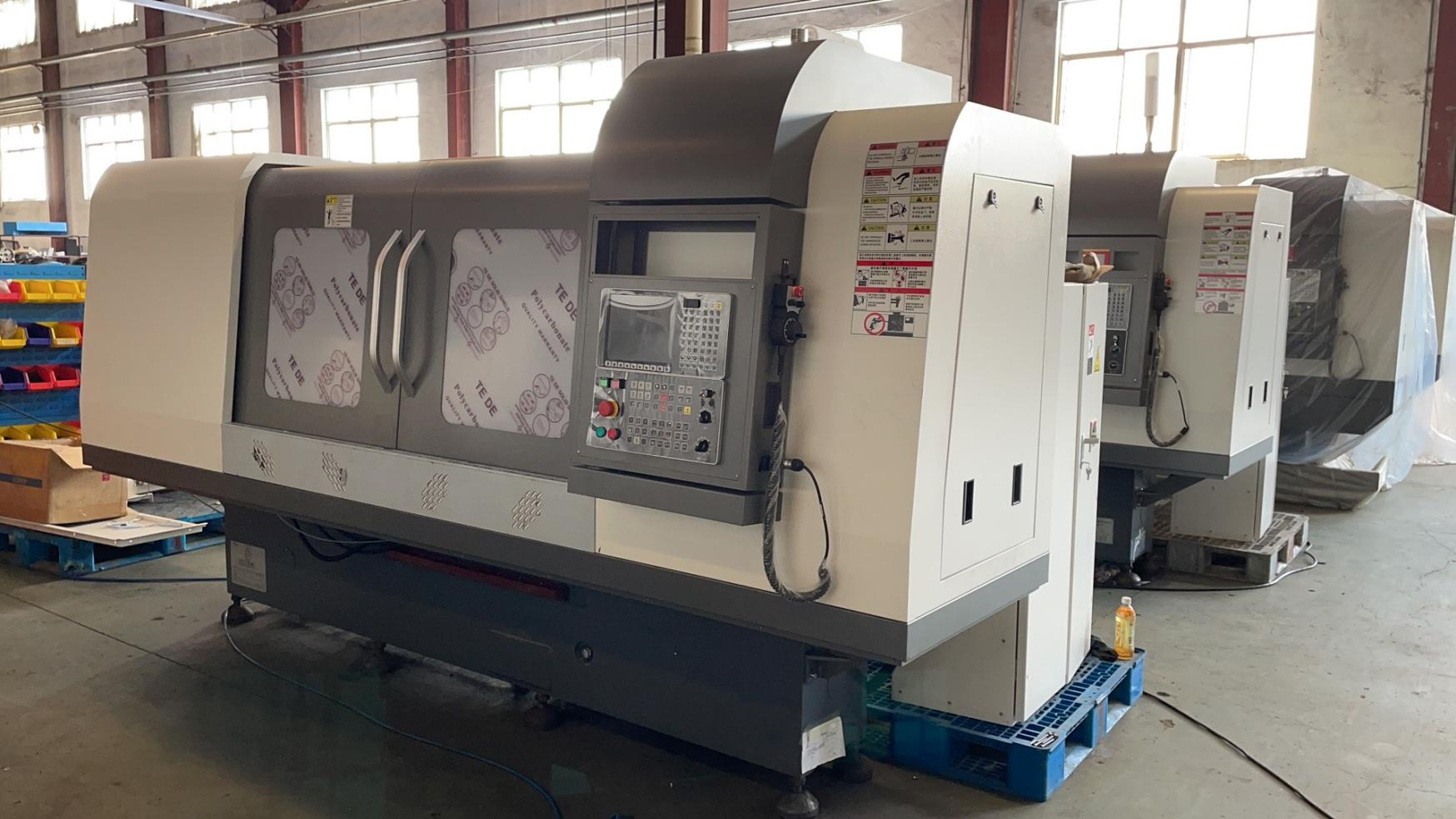

Cylinder Grinder MK1332X1000
$31000
|
MODEL
SPEC. |
MK1332×1000 |
|
Distance between center (mm) |
1000 |
|
Center height (mm) |
180 |
|
Max. grinding diameter (mm) |
8-320 |
|
Max. grinding length (mm) |
1000 |
|
Max. work piece weight (KG) |
150 |
|
Workhead center taper(MT) |
5 |
|
Workhead speed(r/min) |
19-190 |
|
Workhead rotation possibility |
Impossiblity |
|
Wheel head spindle motor (KW) |
11 |
|
Wheel peripheral speed (m/s) |
35 |
|
Grinding wheel size(OD*W*ID mm) |
600*75*305 |
|
Worktable swiveling angle |
CW 3°/ CCW7° |
|
Tailstock taper |
MT4 |
|
Tailstock quill stroke (mm) |
30 |
|
Control System |
FANUC CNC |
|
Work accuracy (standard Grinding test piece:45#） |
|
|
Roundness (μm) |
2.5 |
|
Cylindricity(μm) |
8 |
|
Roughness(μm） |
Ra0.2 |
|
Package (L*W*H) mm |
4300*2250*2500 wooden pallet |
|
Weight (kg) |
4500 |
