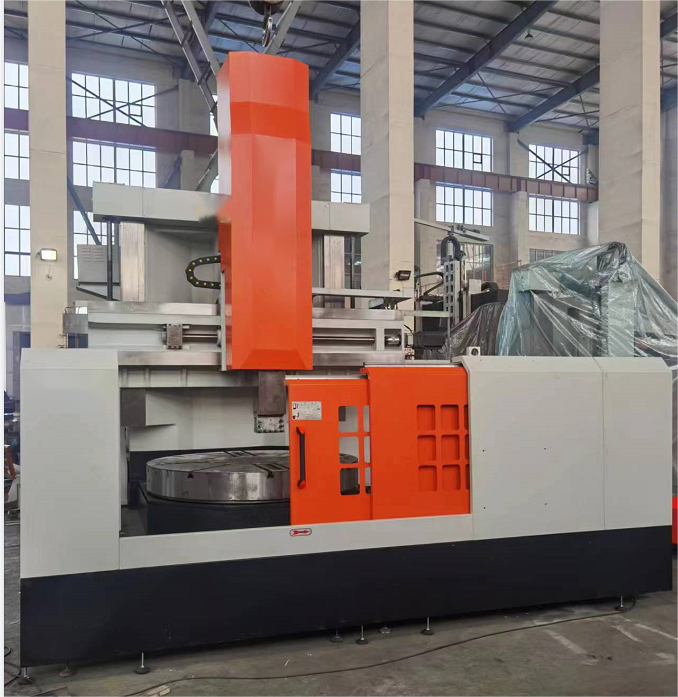

CNC VERTICAL TURNING LATHE WITH FANUC OI TF CK5123
$88000
|
Item |
Specification |
Unit |
|
Maximum Cutting Diameter of the Vertical Tool Post |
2300 |
mm |
|
Worktable Diameter |
2000 |
mm |
|
Maximum Machining Height |
1300 |
mm |
|
Maximum Workpiece Weight |
8 |
t |
|
Worktable Speed Range |
0.1 - 80 |
r/min |
|
Worktable Speed Stages |
Four-speed, stepless |
– |
|
Maximum Worktable Torque |
25 |
kN·m |
|
Tool Post Feed Stages |
Stepless |
– |
|
Saddle Horizontal Travel |
1110 |
mm |
|
Saddle Vertical Travel |
800 |
mm |
|
X-Axis Rapid Traverse Speed |
3000 |
mm/min |
|
Y-Axis Rapid Traverse Speed |
3000 |
mm/min |
|
Crossbeam Travel |
890 |
mm |
|
Crossbeam Lifting Speed |
410 |
mm/min |
|
Lifting Motor Power |
3 |
kW |
|
Tool Holder Cross-Section (L × W) |
30 × 40 |
mm |
|
Main Motor Power |
37 |
kW |
|
Overall Dimensions |
5500 × 6500 × 4250 |
mm |
|
CNC System Configuration |
FANUC OI TF |
– |
|
CNC Axes |
X, Z (Two-Axis Linkage) |
– |
|
Positioning Accuracy |
0 |
mm |
|
Repeatability Accuracy |
0 |
mm |
|
Machining Dimensional Accuracy |
IT7 |
– |
|
Machine Weight (approx.) |
27 |
t |
