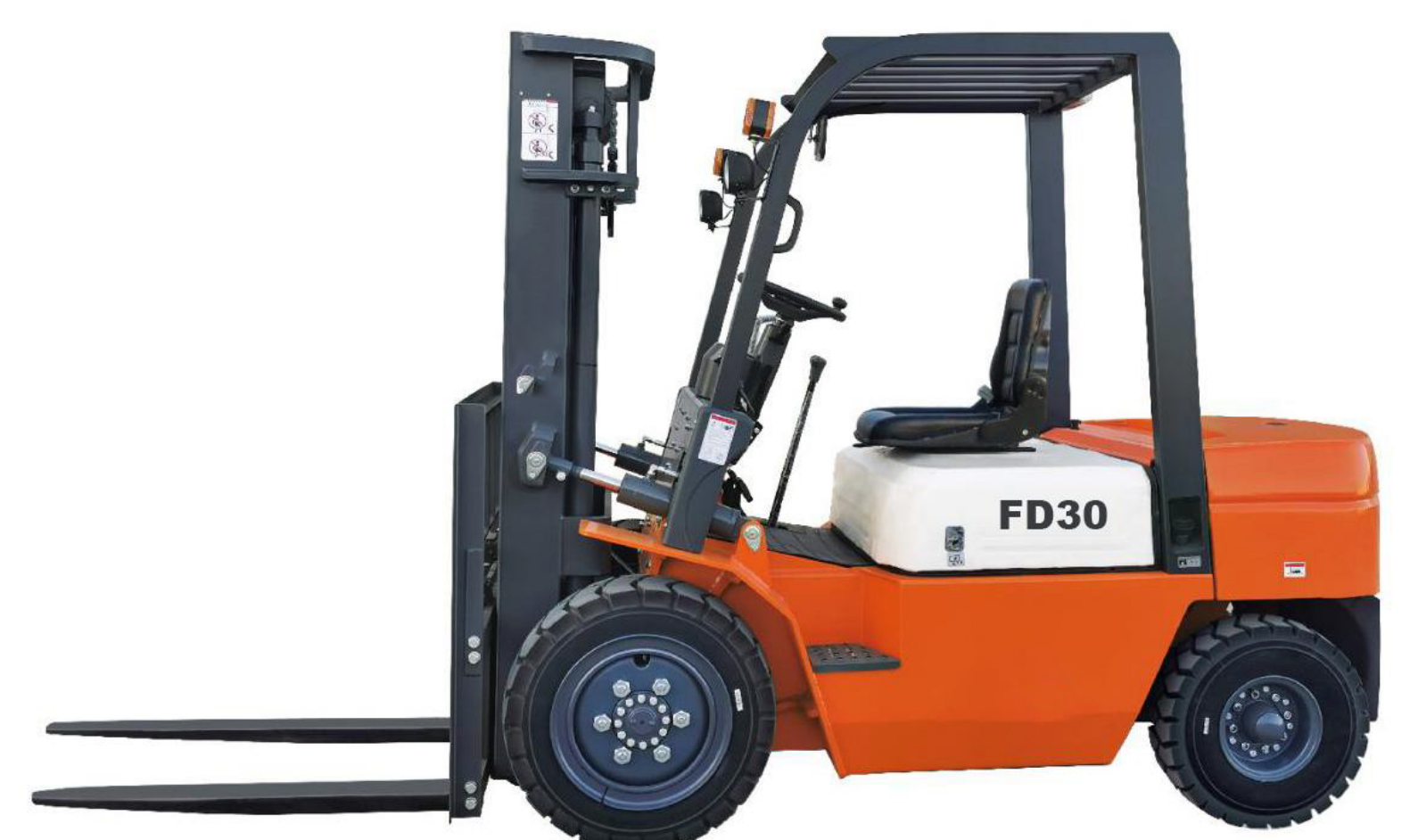

Diesel forklift 3.5T with Japan Isuzu C240 engine
$11800
|
Model |
|
FD30 |
|
Rated lifting load |
kg |
3000 |
|
Load center distance |
mm |
500 |
|
Free lifting height |
mm |
160 |
|
Overall length(With forkWithout fork) |
mm |
3752/2682 |
|
Width |
mm |
1225 |
|
Overhead guard height |
mm |
2090 |
|
Wheelbase |
mm |
1700 |
|
Minimum ground clearance |
mm |
135 |
|
Mast tilt angle (frontrear) |
% |
6°/12° |
|
Tire no. (before) |
|
28×9-15-14PR |
|
Tire no. (after) |
|
6.5-10-10PR |
|
Minimum turning radius (outer side) |
mm |
2400 |
|
Minimum right angle aisle width |
mm |
4260 |
|
Fork size |
mm |
1070X125X45 |
|
maximum working speed(Full-load/No-load) |
km/h |
18/19 |
|
maximum lifting speed(Full-load/No-load) |
mm/s |
440/480 |
|
maximum gradeability(Full-load/No-load) |
% |
15/20 |
|
Forklift weight |
kg |
4250 |
|
Engine model |
|
Isuzu C240 |
