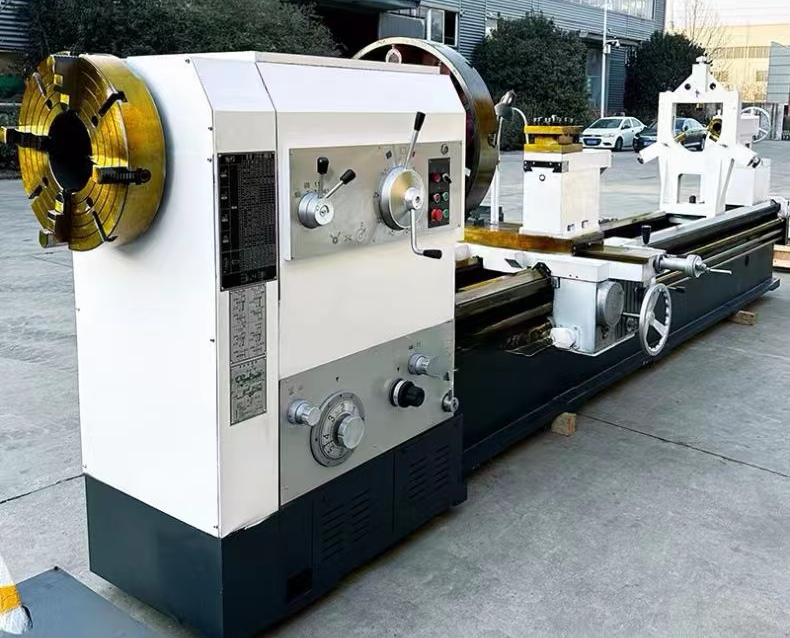

Pipe threading lathe Q1327X1500
$30000
|
Item |
Unit |
Q1327 |
|
Max dia.swing over bed |
mm |
800 |
|
Max dia.swing over cross slide |
mm |
470 |
|
Max.length of work-piece |
mm |
1500 |
|
Pipe threading range |
mm |
Φ50-273 |
|
Width of bed |
mm |
600 |
|
Spindle bore |
mm |
280 |
|
Spindle center height |
mm |
400 |
|
Power of spindle motor |
Kw |
15 |
|
Range of spindle speed |
r/min |
20-100/100-300 VF2 steps |
|
Max.traverse of X/Z |
mm |
X:350 Z:3750 |
|
Z axis feed grade /range |
mm/r |
32/0.095-1.4 |
|
X axis feed grade /range |
mm/r |
32/0.042-0.7 |
|
Carriage raid traverse speed |
mm/min |
3740 |
|
Cross slid raid traverse speed |
mm/min |
1870 |
|
Metric thead grade/range |
mm |
25/1-15 |
|
Inch thead grade/range |
T.P.I |
26/14-1 |
|
Traverse of cross slide |
mm |
430 |
|
Max. Travers of turret |
mm |
250 |
|
Tailstock quill travel |
mm |
250 |
|
Tailstock quill Dia. |
mm |
100 |
|
Tailstock quill taper |
mm |
Morse NO.6 |
|
Chuck |
|
Φ780 4-jaw chuck |
|
Overall dimensions(L*W*H) |
mm |
3850×1650×1600 |
|
Machine weight |
T |
6.3 |
