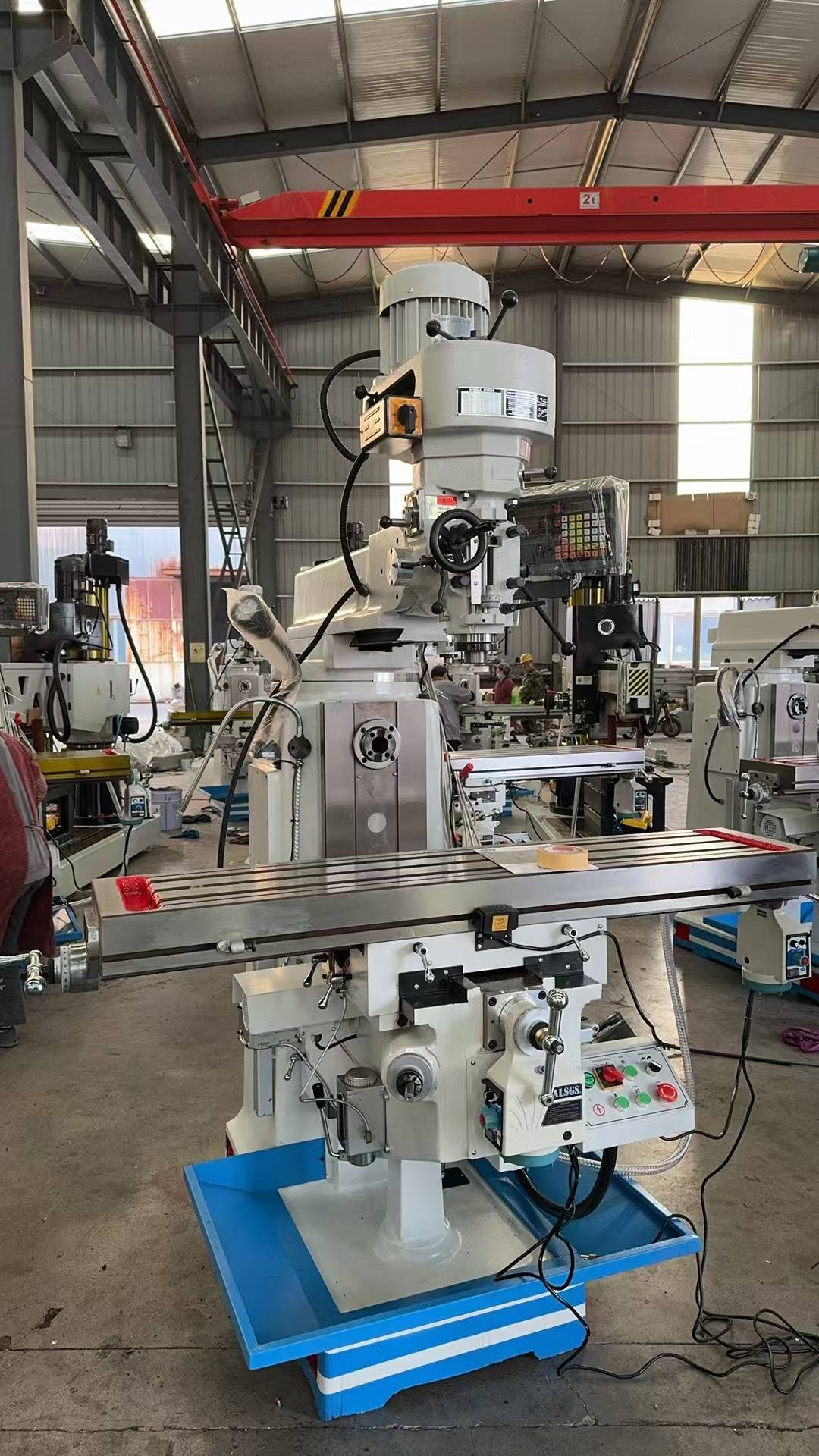

Vertical Turret Milling Machine 5HW

$7000

1. 5HW Vertical Turret Milling Machine – Application

The 5HW vertical turret milling machine is a compact and versatile machine where the worktable moves the workpiece, and the high-speed spindle rotates the tool for cutting. The machine has a turret-like structure, providing high flexibility and precision. The milling head can rotate 90° left and right, and 45° front and back. The ram not only extends and retracts but can also rotate 360° in the horizontal plane, greatly enhancing the effective working range of the machine.

This turret milling machine is primarily used for batch production, small-batch production, as well as in departments such as mechanical processing, tool repair, and mold-making. It has high rigidity and good processing accuracy, making it suitable for machining various planes, holes, and complex-shaped parts. After a single clamping, it can perform a variety of machining processes, including milling, drilling, boring, reaming, tapping, and more. This makes it widely applicable across industries such as machinery, electronics, national defense, automotive, tractors, molds, and light industry, and it is ideal for technological upgrades and equipment renewal.

The machine features an advanced and reasonable structure, is easy to operate and maintain, and can be equipped with various CNC systems according to user requirements.

2. Features of the 5HW Vertical Turret Milling Machine

• The machine uses wide rectangular guide rails, and the X, Y, and Z-axis guideways are treated with ultrasonic quenching, precision grinding, and scraping, combined with forced lubrication. This reduces low-speed creep, improves precision, and extends the machine's service life.
• The lubrication system ensures that the longitudinal, transverse, and vertical ball screws and guide rails are lubricated, reducing wear and guaranteeing efficient machine operation.
• The cooling system is equipped with an adjustable nozzle to control the flow of coolant, catering to different processing needs.
• The control panel is designed with intuitive symbols, making the machine easy to operate.

3. Machine Structure Overview

The machine consists of several parts, including the bed, saddle, worktable, elevating seat, column, cooling system, and lubrication system.

• The machine body consists of the bed and column, with the column fixed onto the bed.
• The milling head is a high-power, mechanical-speed-regulated, high-precision head.
• The saddle and bed are connected by rectangular guideways, and the worktable is moved along the X and Y axes by lead screws and nuts.
• The cooling liquid is stored inside the bed.
• The lubrication of the guideways and transmission components is achieved using a hand-operated oil pump.
